Facilities List

Equipment	Q'ty
Winding machine	760
High-speed Winding machine	11
Wire hooked Machine	2
Automatic Transformer Tester	87
Impulse tester	42
Hi-pot tester	94
Ohm meter (Resist Tester)	6
Direct Current Tester (for superposition tester)	4
Solder Pot	63
Curing Oven	78
Infrared reflow machine	12
Vacuum Dry Oven	9
Stamping machine	26
Inkjet Printer	3
Impregnation machine	8
Digital CCD(charge coupled device) Camera	7
Thermostat	1
Auto tester and gluing equipment	2
Dispenser	66

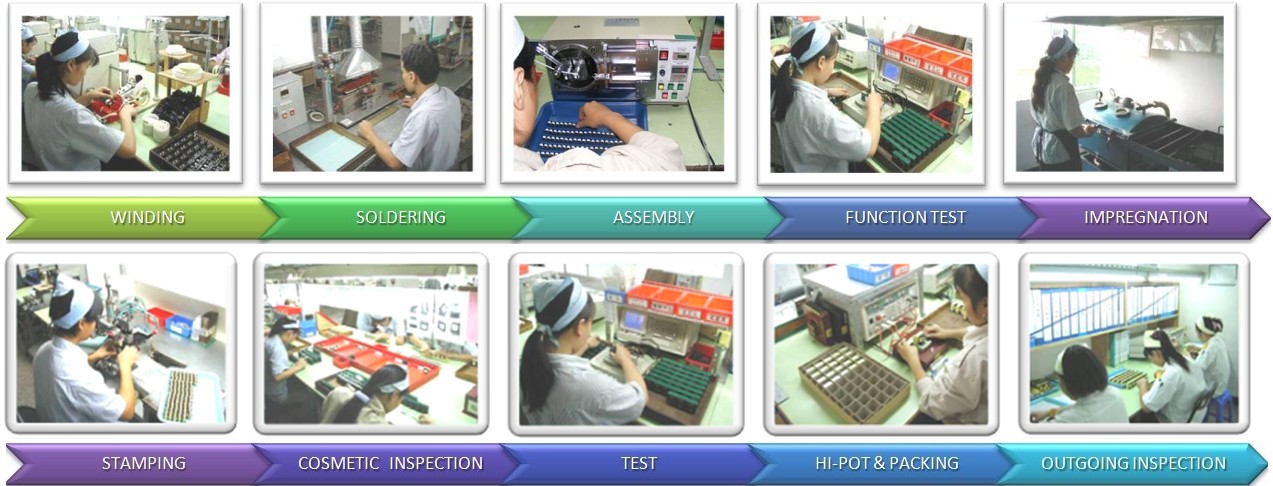

Magnetic Basic Process

Winding → Soldering → Assembly → Function Test → Impregnation → Stamping → Cosmetic Inspection → Test → Hi-Pot & Packing → Outgoing Inspection

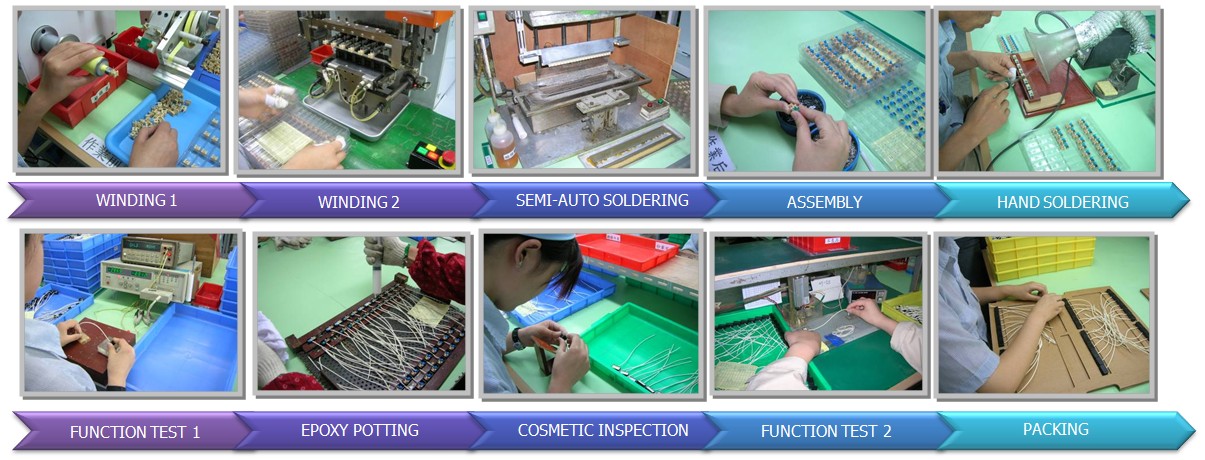

HV Basic Process

Winding 1 → Winding 2 → Semi-Auto Soldering → Assembly → Hand Soldering → Function Test 1 → Epoxy Potting → Cosmetic Inspection → Function Test 2 → Packing
